6251-11-9320 6251119320 Tube Excavator Engine Parts For KOMATSU SAA6D125E

• 6251-11-9320 6251119320 Tube Excavator Engine Parts Fit For KOMATSU SAA6D125E

• Specification

Application	KOMATSU excavator engine parts
Name	Tube
Parts No	6251-11-9320 6251119320
Model	SAA6D125E
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Applicable models

DUMP TRUCKS HM300
ENGINES SAA6D125E
EXCAVATORS PC400 PC450
WHEEL LOADERS WA470 WA480 Komatsu

• More tube parts supplied to KOMATSU machine

203-60-31160 TUBE

AIR, PC130, PC138, PC138US, PC160, PC190, PC200, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC350, PC400, PC450, PRESSURE, RAIN, WINDOW

707-86-12560 TUBE,R.H.

PC400, PC450, PC550

6251-71-5490 TUBE

HM300, PC400, PC450, SAA6D125E, WA470, WA480

6251-71-5112 TUBE, FUEL SUPPLY, NO. 1

HM300, PC400, PC450, SAA6D125E, WA470, WA480

421-877-3340 TUBE,R.H.

WA450, WA470, WA480

421-43-41120 TUBE

WA470, WA480

6251-61-8230 TUBE, INLET

PC400, PC450, SAA6D125E

423-60-35520 TUBE

FRONT, WA380, WA380Z, WA450, WA470, WA480

421-877-4550 TUBE, LHS

WA480

07822-00431 TUBE

HD180, HD325, HD680

566-95-6A760 TUBE

HD325, HD405

566-95-6A750 TUBE

HD325, HD405

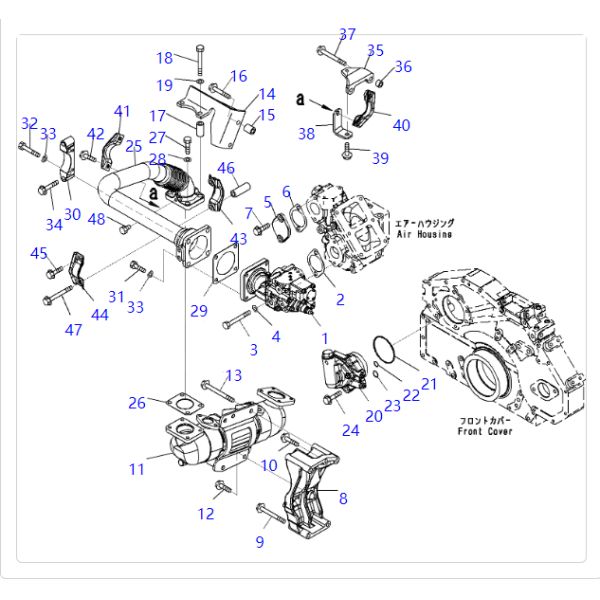

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	6261-41-4900	[1]	Valve Assembly Komatsu	8.592 kg.
			["SN: 560004-UP"]
2	6166-61-6341	[1]	Gasket Komatsu	0.01 kg.
			["SN: 560004-UP"]
3	01011-E1005	[2]	Bolt Komatsu	0.075 kg.
			["SN: 560004-UP"]
4	01643-31032	[2]	Washer Komatsu	0.054 kg.
			["SN: 560004-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
5	6251-11-4220	[1]	Cover Komatsu China
			["SN: 560004-UP"]
7	01435-01025	[2]	Bolt Komatsu	0.192 kg.
			["SN: 560004-UP"] analogs:["0143521025"]
8	6251-21-6610	[1]	Bracket Komatsu China
			["SN: 560004-UP"]
9	01435-01090	[2]	Bolt Komatsu	0.057 kg.
			["SN: 560004-UP"]
10	01435-01035	[1]	Bolt Komatsu	0.03 kg.
			["SN: 560004-UP"]
11	6251-61-7100	[1]	Cooler Assembly, EGR Komatsu	10.75 kg.
			["SN: 560004-UP"]
12	01435-01020	[1]	Bolt Komatsu	0.023 kg.
			["SN: 560004-UP"] analogs:["0143521020"]
13	01436-01020	[2]	Bolt Komatsu	0.073 kg.
			["SN: 560004-UP"]
14	6251-61-7150	[1]	Bracket Komatsu China
			["SN: 560004-UP"]
15	6128-21-6730	[1]	Spacer Komatsu	0.11 kg.
			["SN: 560004-UP"]
16	01435-01050	[2]	Bolt Komatsu	0.037 kg.
			["SN: 560004-UP"]
17	6138-81-8660	[2]	Spacer Komatsu	0.072 kg.
			["SN: 560004-UP"]
18	01010-E1085	[2]	Bolt Komatsu	0.063 kg.
			["SN: 560004-UP"] analogs:["0101031085"]
20	6251-51-9100	[1]	Pump Assembly, EGR.Oil Komatsu	4.81 kg.
			["SN: 560004-UP"]
21	07000-72085	[1]	O-ring Komatsu China	0.03 kg.
			["SN: 560004-UP"] analogs:["0700062085"]
22	07000-72012	[1]	O-ring Komatsu China	0.001 kg.
			["SN: 560004-UP"] analogs:["0700062012", "6127612971", "R0700072012"]
23	07000-72015	[1]	O-ring Komatsu China	0.01 kg.
			["SN: 560004-UP"] analogs:["0700062015"]
25	6251-11-9320	[1]	Tube Komatsu	3.96 kg.
			["SN: 560004-UP"]
26	6261-11-9520	[1]	Gasket Komatsu	0.014 kg.
			["SN: 560004-UP"]
27	01010-E1030	[2]	Bolt Komatsu China	0.03 kg.
			["SN: 560004-UP"] analogs:["0101031030"]
29	6261-11-9480	[1]	Gasket Komatsu China
			["SN: 560004-UP"]
30	6251-11-9150	[1]	Plate Komatsu China
			["SN: 560004-UP"]
32	01010-E1060	[2]	Bolt Komatsu	0.048 kg.
			["SN: 560004-UP"] analogs:["0101031060"]
34	01010-81045	[2]	Bolt Komatsu	0.039 kg.
			["SN: 560004-UP"] analogs:["0101051045", "01010D1045"]
35	6251-11-9210	[1]	Bracket Komatsu China
			["SN: 560004-UP"]
36	6131-12-5920	[2]	Spacer Komatsu	0.032 kg.
			["SN: 560004-UP"]
38	6251-11-9220	[1]	Bracket Komatsu China
			["SN: 560004-UP"]
40	6251-11-9130	[1]	Clamp Komatsu China
			["SN: 560004-UP"]
41	6251-11-9170	[1]	Clamp Komatsu China
			["SN: 560004-UP"]
43	6251-11-9180	[1]	Clamp Komatsu China
			["SN: 560004-UP"]
46	6112-23-6971	[1]	Spacer Komatsu	0.125 kg.
			["SN: 560004-UP"]
47	01435-01085	[1]	Bolt Komatsu	0.055 kg.
			["SN: 560004-UP"]
48	6215-11-5920	[1]	Plug Komatsu	0.02 kg.
			["SN: 560004-UP"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
